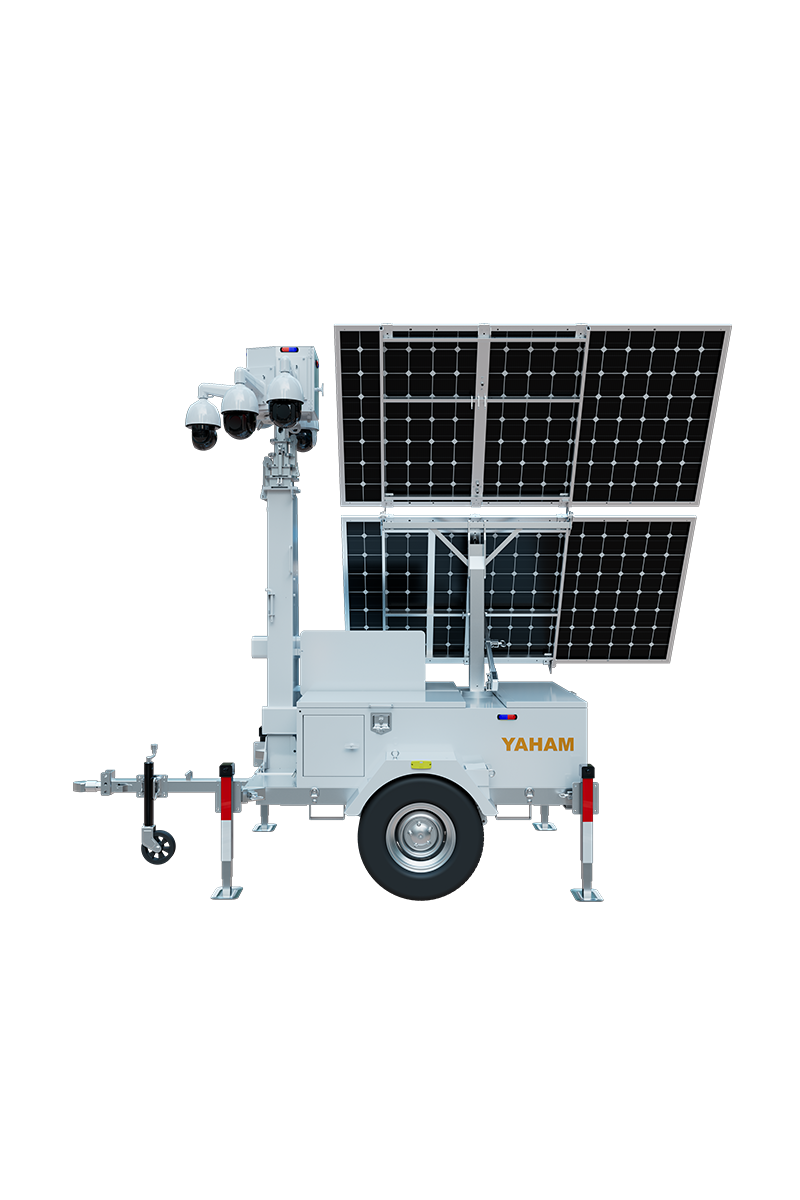

Y-CCTV is a green zero-carbon energy smart security system based on high-efficiency solar drive and intelligent energy storage technology. Equipped with 2×600 W double-sided high-efficiency solar panels and advanced energy storage modules, it can be activated at the touch of a button in a grid-free environment, providing continuous power supply and realizing 24-hour all-weather surveillance. Designed for power-scarce or remote areas, it can be used as a security solution for remote sites or as a cost-effective asset for rental service providers. The modular architecture supports rapid deployment by a single person in 15 minutes, and IP66-rated protection ensures stable operation in extreme climates, making it a perfect fit for different demanding scenarios.

Parking lots, mining sites, construction sites, intersections, public events, border security, and agricultural lands.

Equipped with two 600W foldable double-sided insulated glass solar panels. 144° horizontal rotation and 30°–60° adjustable tilt angles boost solar conversion efficiency. Plug & play, zero emissions.

Built-in 4×250Ah (12KWh) high-capacity battery. Designed for reliable performance in -20°C to 50°C environments. Custom solutions available for extreme conditions. Supports 1.5KW AC charging when sunlight is limited, ensuring continuous and stable power supply.

Six-sided design with standard mounting holes and detachable mounting plates, supports rotation. Compatible with mainstream CCTV brands like AXIS. Flexible configuration available upon request. Easy to install—ideal for a wide range of surveillance scenarios.

Features internal cable routing for improved safety over traditional exposed spring cables. Crafted from high-strength steel with hot-dip galvanization for superior durability in outdoor environments. Engineered with a high safety margin and triple anti-drop protection. Available in 7m and 9m heights, with wind resistance up to 117km/h. Height adjustable to adapt to complex terrain—ensuring maximum stability and safety.

Self-developed IoT system enables remote monitoring and control. The industry-first design integrates wind sensors that automatically fold the solar panels and lower the mast to trigger protection mode when wind speeds exceed threshold—ensuring safe operation in harsh weather.

Lightweight structure with a total weight of approximately 1100kg. Equipped with electric brakes, 14-inch tires, and four outriggers for enhanced mobility and stability. Single-person operation: fully deployable in just 10 minutes—saving time and labor costs while supporting efficient on-site operations.
